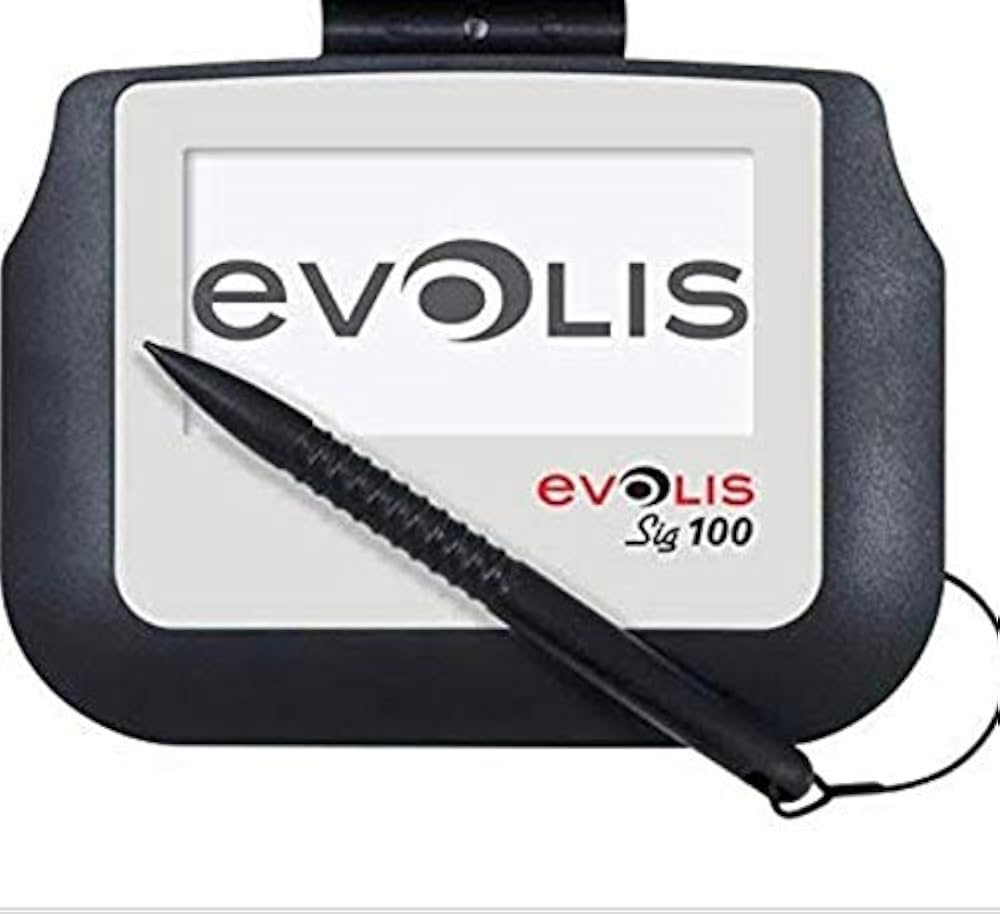

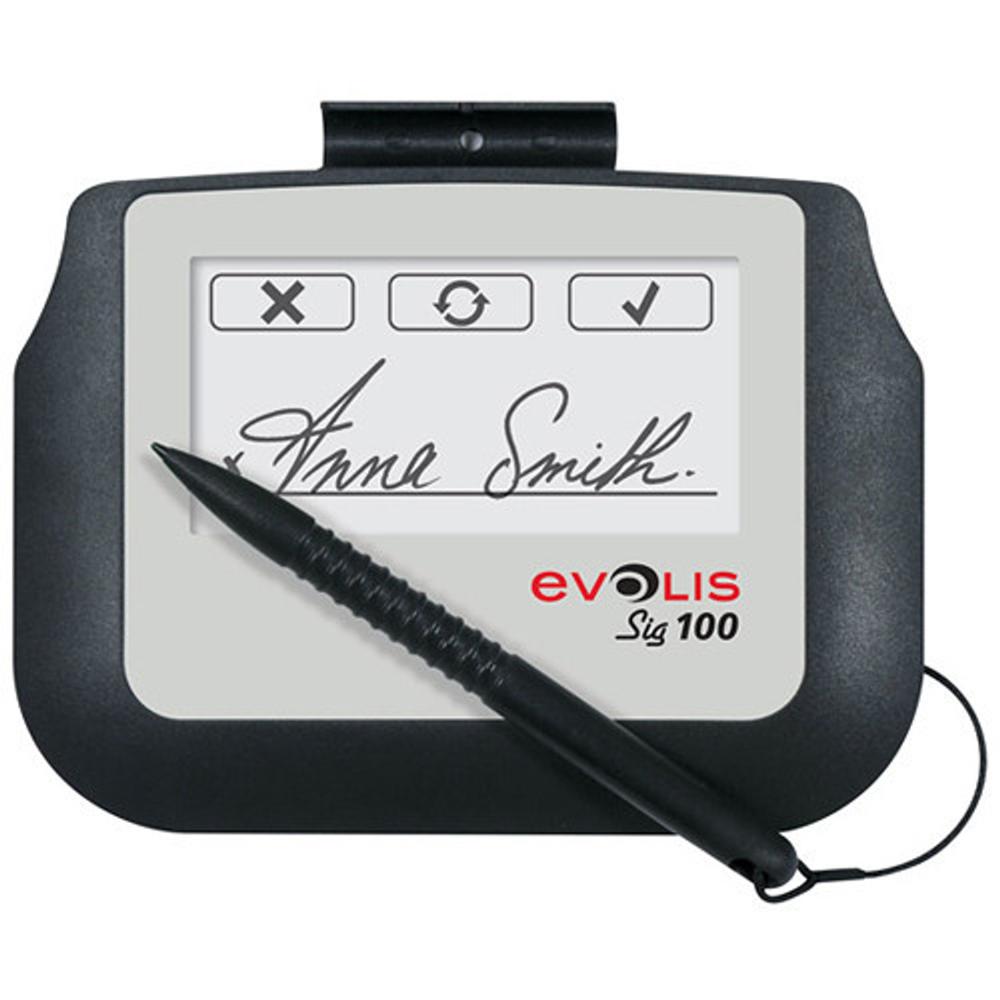

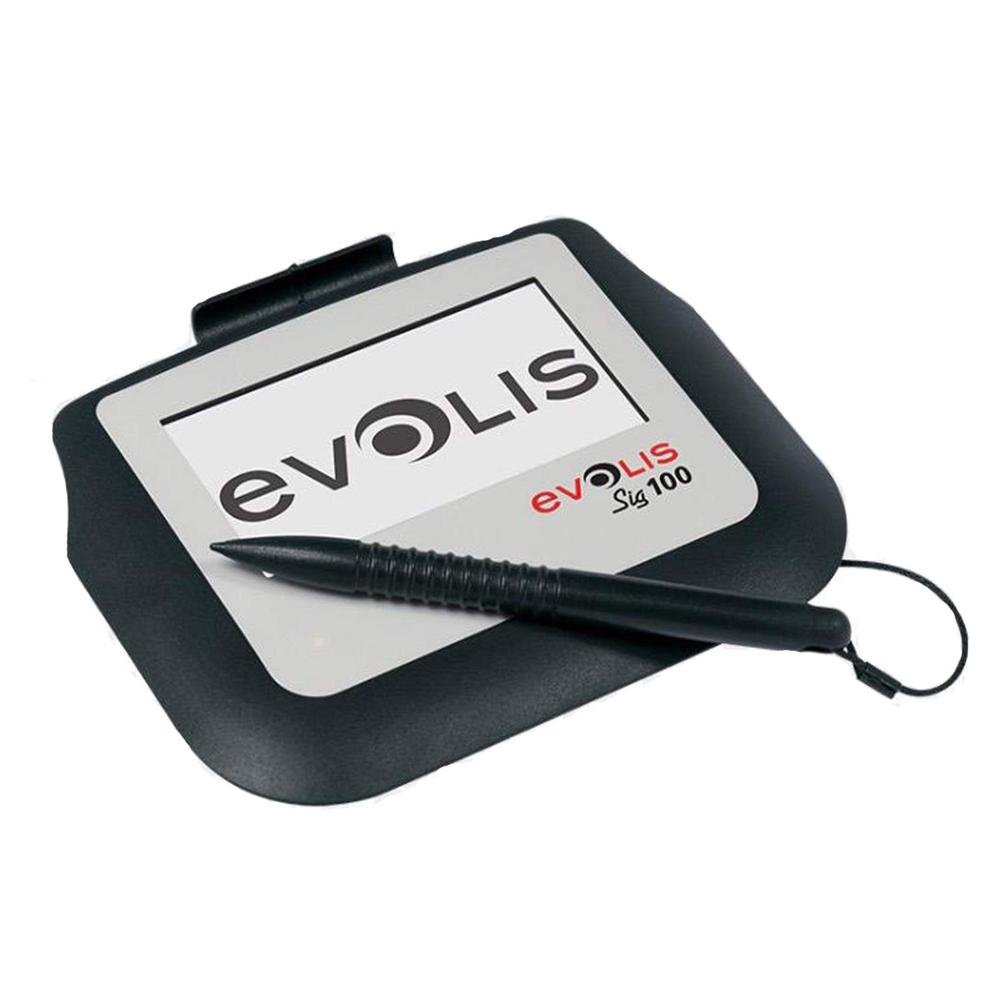

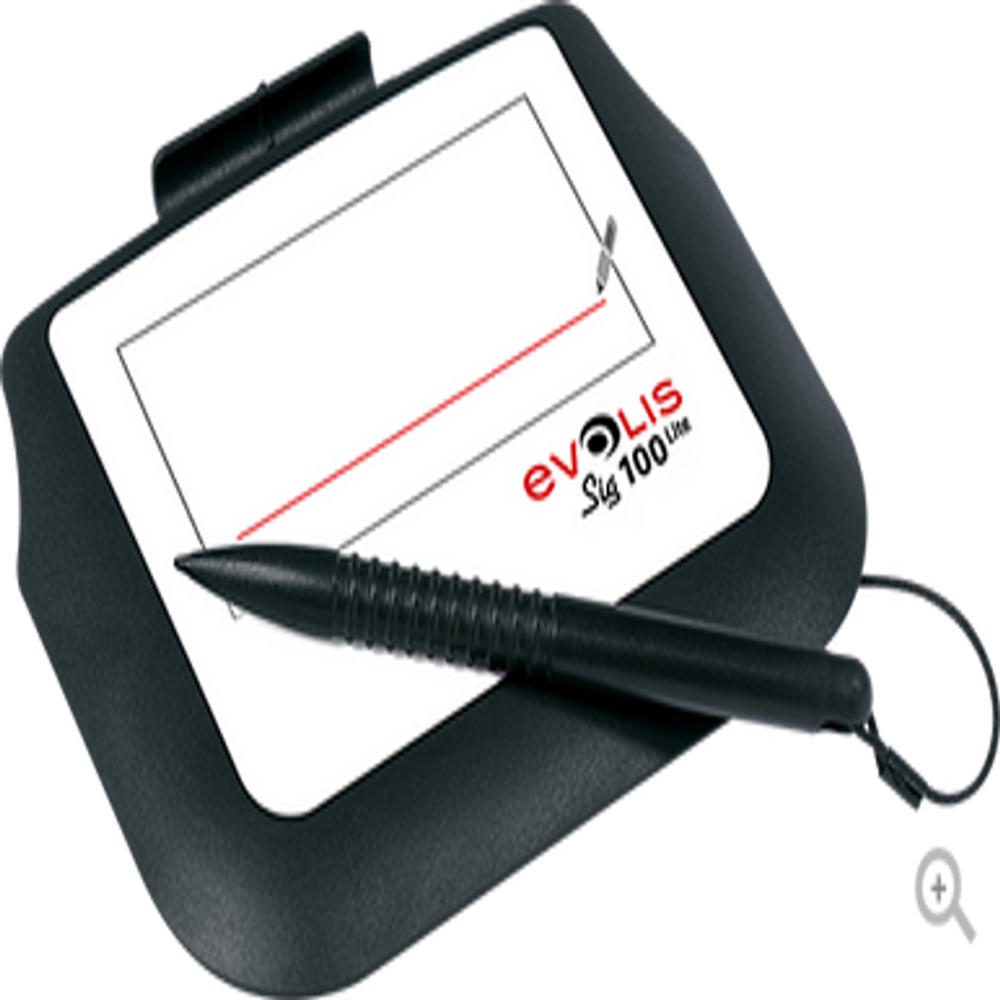

The SIG100 LITE Economic signature pad has a special writing surface for accurate signature capture.

The signature appears in real-time on the computer screen.

Main characteristics:

• Signature surface: 95 x 47 mm
• Resolution: 4036 x 4036 pixels / 2214 x 1130 dpi
• Linearity: +/- 1.5 %
• Stylus: Neutral
• Power: via USB cable only
• Dimensions (H x W x D): 10 x 160 x 120 mm
• Weight: 200 g
• Manufacturer Warranty: 2 years

TECHNICAL DATA

GENERAL FEATURES

Slim and ergonomic design

Active and battery-free pen with changeable pen tips

Tether

2 LED status indicators

DISPLAY

P/N:

ST-GERT-3-UEVL

ST-GERT-3-UEVL-MB1 (bundled with

SignoSign/2)

SUPPORTED OS

Windows XP 32/64, W8 32/64,

W10 32/64

Server 2003, 2008, 2010, W7 32/64

Linux

CERTIFICATIONS AND STATEMENT OF

COMPLIANCE

TUV

CE, FCC

RoHS

EN 60950-1, EN 61000-6-1, EN 61000-6-3

PROTECTION CLASS

IP52

5 (12.7 cm)

Full color TFT

Real time signature display

Backlit display

16 milions colors

800 x 480 pixels

SENSOR

Electromagnetic Resonance Technology (ERT)

Only responsive to the pen

Active signing area: 108 x 64 mm (4.25 x 2.52)

Resolution: 10206 x 7422 pixels / 2400 x 2909 ppi

Linearity: +/- 0.4 mm

1024 pressure levels

Hardened special glass

SIGNATURE DIGITIZATION

External sampling rate: 500 Hz (samples per second),

4 axes (x, y, time and pressure)

Internal sampling rate: 6000 Hz (samples per second)

SECURITY

AES encryption of data transfer between the pad and the

computer

RSA signature and encryption in the pad

Unique internal serial number

SIZE AND WEIGHT

12 x 145 x 177 (0.47 x 5.71 x 6.97)

220 g (0.49 lbs.)

INTERFACE

Windows USB High-speed (460 Mbits/s) and HID-USB 2.0

High Speed (12 Mbits/s).

Driver necessary for operating system below than W8

available on www.evolis.com

POWER

Via USB cable, no external power supply

SOFTWARE

Optional signoSign/2 software for creating and signing

secure PDF documents

Free SDK available upon request:

- Screen configuration and customization

- Definition of signature area

- Signature capture in various formats

- RSA-signing functionality in the pad

- Documentation available on demand

Free Tools and Twain driver available at www.evolis.com

WARRANTY

2 years

SIG200: Ergonomic signature pad

• Signing Area: 3.74" x 1.85"
• Input Device Type: Stylus
• Display Type: LCD - Backlit
• Maximum Resolution: 320 x 160
• Host Interface: USB & Interfaces/Ports: USB 2.0
